Turbine bearings

Turbine bearings

Steam turbine bore diameter range:200-710mm

Speed range:1000rpm-3600rpm

Max power:One million KW

Gas turbine bore dia.:60-150mm

Speed range:10000rpm-25000rpm

Power:850MW

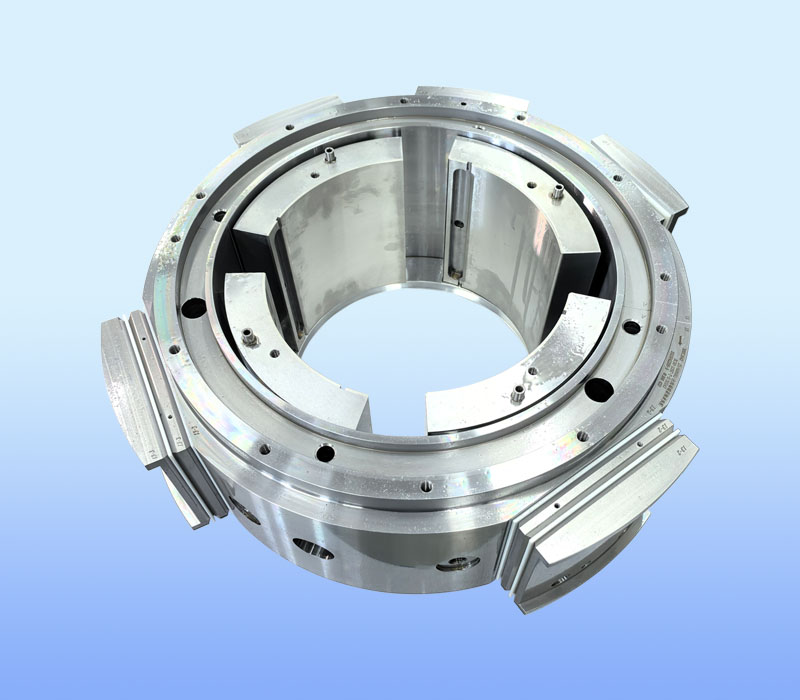

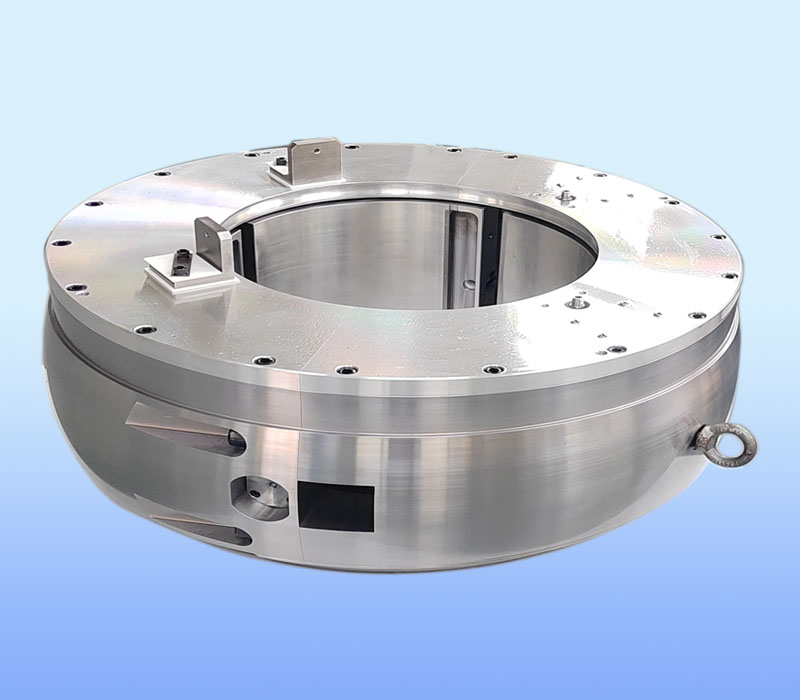

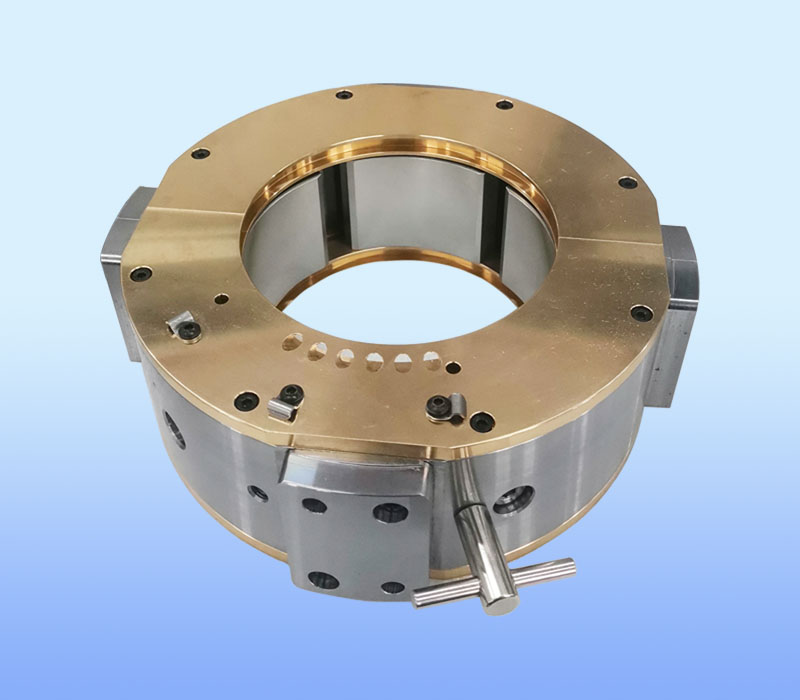

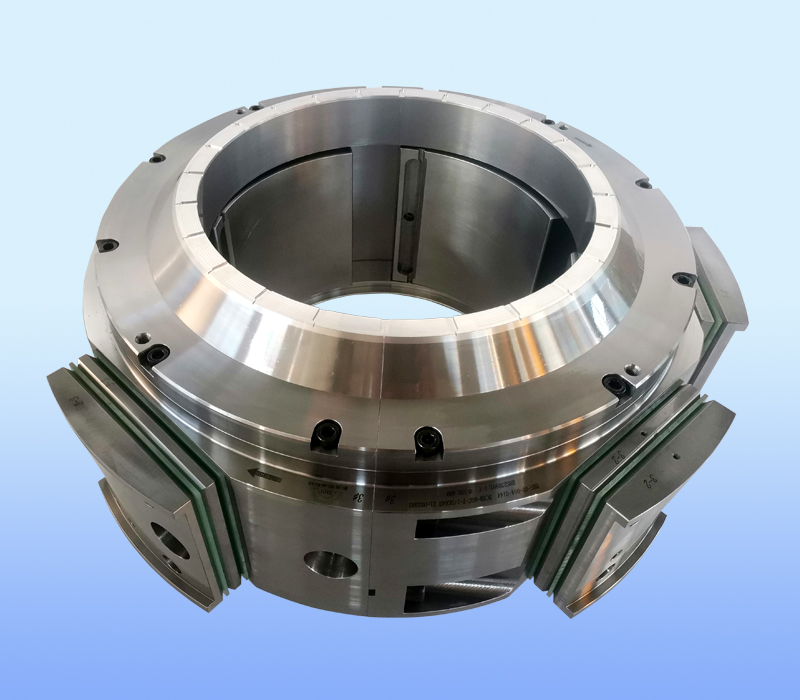

Tiling pad bearing with oil jacking

Maximum linear speed:120m/s

Average pressure:3.2Mpa

Tilting pad shell materail:42CrMo

Tilting pad material:42CrMo+Babbitt or Cu-Cr+Babbitt

Babbitt (Tegostar 738) comply with European requirements.

Self-alignment,soft support,spherical pivot

Bearing clearance be adjustable

Lower Vibration and temperature raise.

Used in gas-steam combined generators,turbines.

E-mail : [email protected]

Turbine bearings Details

Turbine bearings play a pivotal role in power generation, particularly in steam turbines, gas turbines, and hydro turbines. These bearings are subjected to rigorous conditions, enduring high temperatures, pressures, and rotational speeds to facilitate the continuous and reliable operation of the turbine systems.

In steam turbines, turbine bearings are essential for supporting the rotor shaft and dealing with the immense pressures and temperatures generated by the steam flow. They must withstand both axial and radial loads while maintaining precise alignment to prevent excessive vibration and wear.

Similarly, in gas turbines, bearings endure extreme conditions caused by combustion gases and high-speed rotation of the turbine blades. They provide stability to the rotor shaft, ensuring smooth operation and efficient energy conversion.

About Us

Zhejiang BHS Journal Bearing Co., Ltd. is a professional Turbine bearings Manufacturers and Turbine bearings factory, has been focusing on slide bearing’s design, manufacture, experiment and fault diagnosis for many years, BHS has become an excellent supplier of solutions for sliding bearing systems in China.

The company has more than 50sets of precision CNC machining center, Babbitt alloy casting equipment, Babbitt alloy sprayer, heat treatment, and other equipment. The annual production capacity of 26,000 sets of slide bearings. Through continuous technological research, the company has the ability to manufacture various types of slide bearings.

Our company approved by ISO:9001-2015, ISO:14001-2015, ISO:45001-20018, Standardization Safty production Certificate, National High-Tech Enterprise certificate, Provincial High-Tech Enterprise certificate, Military supplier certificate and variety of patents 30 kinds.
