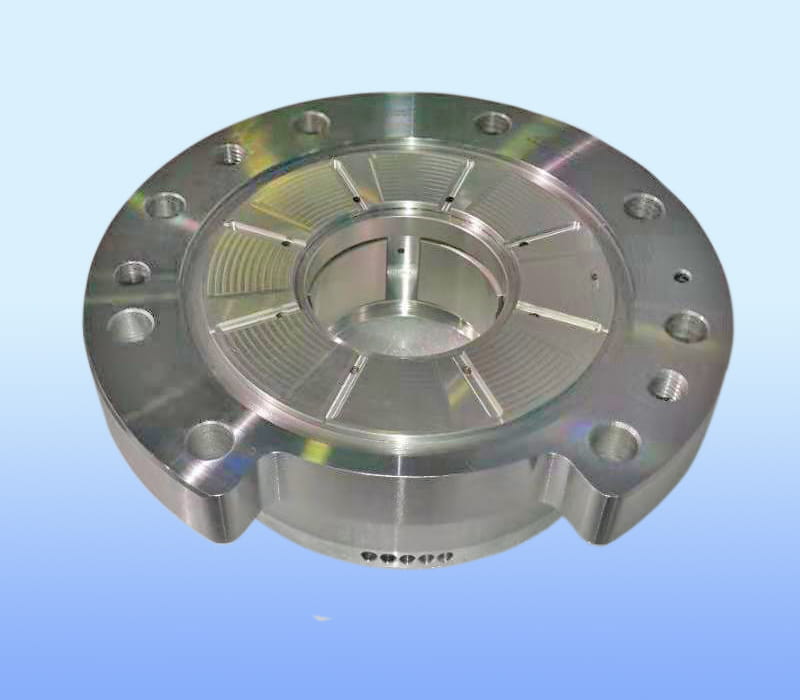

Expander tilting pad radial bearings Details

    Tilting Pad radial Bearings are designed to transfer high axial loads from rotating shafts with minimum power loss,while simplifying installation and maintenance.The shaft diameters for which the bearings are designed range from 20mm to over 1000mm.The maximum loads for the various bearing types range from 0.5 to 500 tons.Bearings of larger size and load capacity can be made to special order.

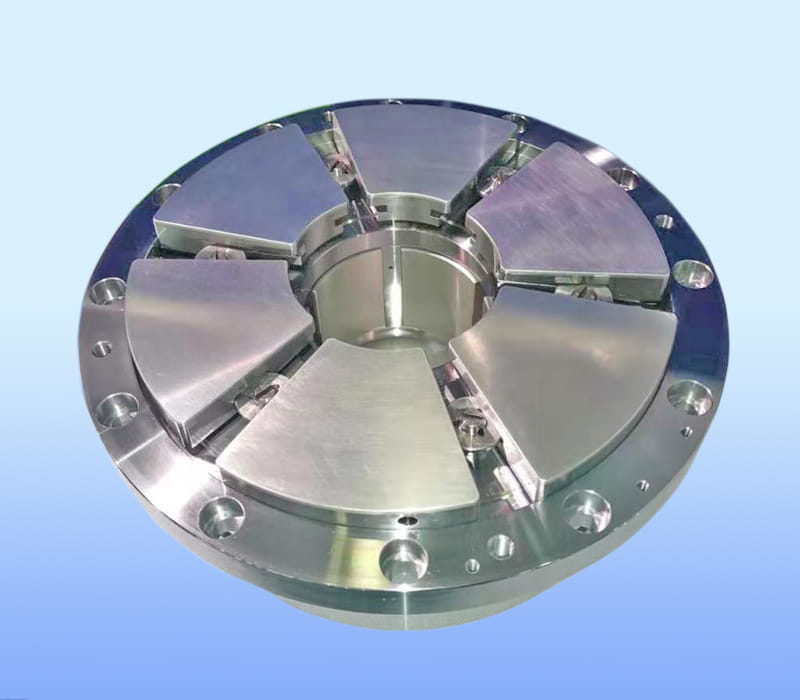

    Each bearing consists of a series of pads supported in a carrier ring; each pad is free to tilt so as to create a self-sustaining hydrodynamic film.The carrier ring may be in one piece or in halves,and there are various location arrangements.
     Two options exist for lubrication.One is by fully flooding the bearing housing,the other,which is more suitable for higher speed applications, directs oil to the thrust face; this oil is then allowed to drain freely from the bearing housing.

About Us

Zhejiang BHS Journal Bearing Co., Ltd. is a professional Expander tilting pad radial bearings Manufacturers and Expander tilting pad radial bearings factory, has been focusing on slide bearing’s design, manufacture, experiment and fault diagnosis for many years, BHS has become an excellent supplier of solutions for sliding bearing systems in China.

The company has more than 50sets of precision CNC machining center, Babbitt alloy casting equipment, Babbitt alloy sprayer, heat treatment, and other equipment. The annual production capacity of 26,000 sets of slide bearings. Through continuous technological research, the company has the ability to manufacture various types of slide bearings.

Our company approved by ISO:9001-2015, ISO:14001-2015, ISO:45001-20018, Standardization Safty production Certificate, National High-Tech Enterprise certificate, Provincial High-Tech Enterprise certificate, Military supplier certificate and variety of patents 30 kinds.

Precision control of motor plain bearings: the key to ensuring stable operation and extending service life

1. The influence of machining accuracy on the performance of motor plain bearingsThe processing accu...

Optimizing the lubrication performance of thrust bearings: challenges and solutions

Friction and wear: challenges faced by thrust bearingsDuring high-speed rotation, huge friction is g...

Analysis of the structure and function of bearings: comparison between sliding bearings and rolling bearings

Structure and function of sliding bearingsSliding bearings, as the name implies, achieve support and...

Thermal management of radial bearings for high-speed pumps: the key to ensuring stable operation

Sources of heat generationDuring the operation of high speed pump journal bearings, the main source ...

Optimized design and performance improvement of steam turbine bearings

In the field of modern industry, steam turbines, as efficient and high-power power conversion device...

Industry Knowledge Expansion

Does the tilting pad radial bearing play a very important supporting and positioning role in the expander?

The tilting pad radial bearing is an important mechanical part that can provide support and positioning for the rotor of the expander. The rotor in the expander will rotate at high speed and bear considerable load when working. This requires tilting pad radial bearings to play a supporting and positioning role to ensure that the rotor can operate stably and maintain the normal rotation axis.
The design and manufacturing of tilting pad radial bearings are very important, and their quality and performance directly affect the normal operation and service life of the expander. First of all, the material selection of the tilting pad radial bearing should take into account its load-bearing capacity, fatigue resistance and wear resistance to ensure that the bearing can withstand the high-speed rotation and large load of the rotor. Secondly, the structural design of the tilting pad radial bearing must be reasonable to ensure that the bearing can provide sufficient support and positioning force, while having smaller friction, higher rotational accuracy, and lower vibration and noise levels.
Under the working conditions of the expander, the supporting and positioning functions of the tilting pad radial bearing are very important. By providing supporting force, the tilting pad radial bearing can withstand the centrifugal force and gravity caused by the rotation of the rotor, thereby maintaining the stable operation of the rotor. At the same time, the tilting pad radial bearing can also provide positioning force so that the rotor can maintain its normal rotation axis and avoid deviation and vibration of the rotor.
In addition to supporting and positioning functions, tilting pad radial bearings also have self-aligning capabilities. During the operation of the expander, the bearings may deform slightly due to changes in load and temperature, but the tilting pad radial bearings can automatically adjust according to this deformation to ensure that the rotor can always rotate in the correct axial direction.
Tilting pad radial bearings play a very important supporting and positioning role in the expander. Its reasonable design and excellent material selection can ensure its ability to withstand high-speed rotation and large loads of the rotor, provide stable support and positioning force, and maintain the normal operation and rotation axis of the rotor. During the operation of the expander, the tilting pad radial bearing can also automatically adjust to adapt to changes in load and temperature. Therefore, tilting pad radial bearings are widely used in modern industry.

If the inlet and outlet materials of the expander are unbalanced, will it bring uneven load to the tilting pad radial bearing of the expander?

If the incoming and outgoing materials of the expander are unbalanced, uneven loads will be applied to the tilting pad radial bearings of the expander. In the long run, the bearings may be overloaded or deflected, thereby damaging the bearings. Once the bearing is damaged, it will cause the equipment to shut down for maintenance, and may cause the production line to stop production, causing huge economic losses to the enterprise.
Unbalanced incoming and outgoing materials will cause the expander tilt pad radial bearing to bear uneven loads. When the feed and discharge are unbalanced, the expander will receive forces in different directions, which will cause the tilting pad radial bearing to generate an eccentric force, causing the bearing to be subjected to uneven loads. Over a long period of time, the bearings will be subjected to excessive pressure, resulting in increased wear, thereby reducing the bearing life, and may eventually cause bearing failure.
Bearing overloading or deflection can be the long-term result of unbalanced incoming and outgoing materials. When a bearing is subjected to uneven loads, its normal working condition will be destroyed. Bearing overload will cause increased friction and temperature, and may cause damage to the bearing surface, accelerating bearing wear and failure. In addition, uneven loading can cause bearings to deflect, further exacerbating bearing damage. If not handled in time, it will cause complete damage to the bearing and may even cause other system failures.
Damaged bearings will cause equipment to be shut down for repairs, resulting in economic losses. Once the bearings of the expander are damaged, the equipment will not be able to operate normally and the production line may have to be shut down for repairs. This will lead to production interruptions, resulting in a decrease in the company's production capacity and reduced output, resulting in economic losses. At the same time, repairing bearings also requires a lot of time and human resources, increasing the company's maintenance costs.
If the incoming and outgoing materials of the expander are unbalanced, it will bring uneven load to the tilting pad radial bearing of the expander, which may cause the bearing to be overloaded or deflected in the long run, and ultimately damage the bearing. In order to avoid this situation, you should ensure that the incoming and outgoing materials of the expander are balanced, and the condition of the bearings should be checked and maintained regularly. Only in this way can the normal operation of the equipment be guaranteed and production failures and economic losses reduced.
